MIL-DTL-17376/2B
HOLES TAPPED
FOR ST'D
SAFTEY PLUGS
NGT THREADS
A
TAP TO RECEIVE
VALVE REQUIRED
NGT THREADS
7/16
MIN.
Size
Part number
Dimension A
3
C17376/2-3
3-1/8-11 UNS-1
4
C17376/2-4
3-1/2-11 UNS-1
NOTE:
1. All dimensions are in inches.

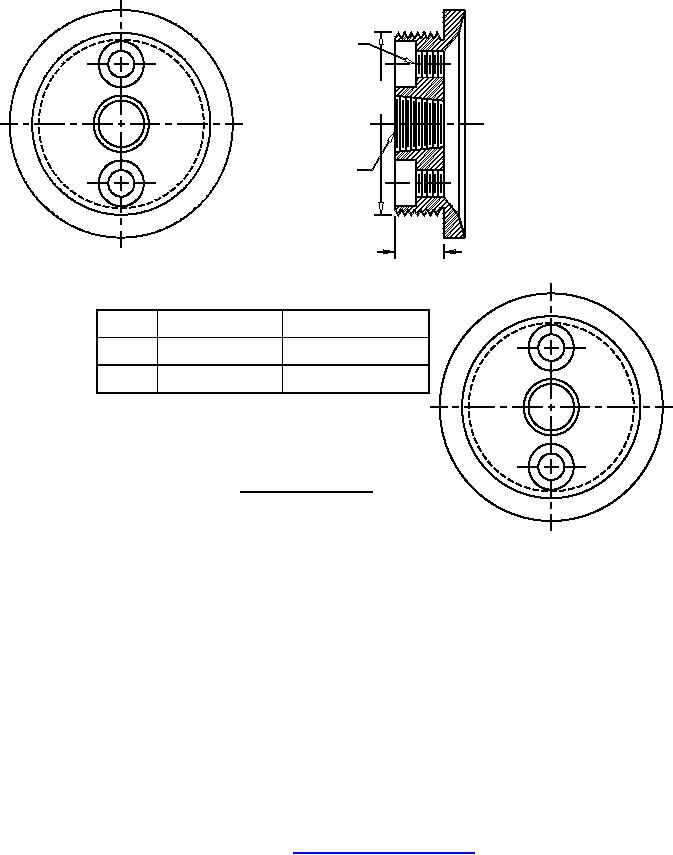

FIGURE 2. Flange with safety.
