MIL-DTL-22606D(SH)
DR1
R Type D plugs shall be O-ring sealed.
1 Type D plugs are based on Type S, Size 1 plugs.

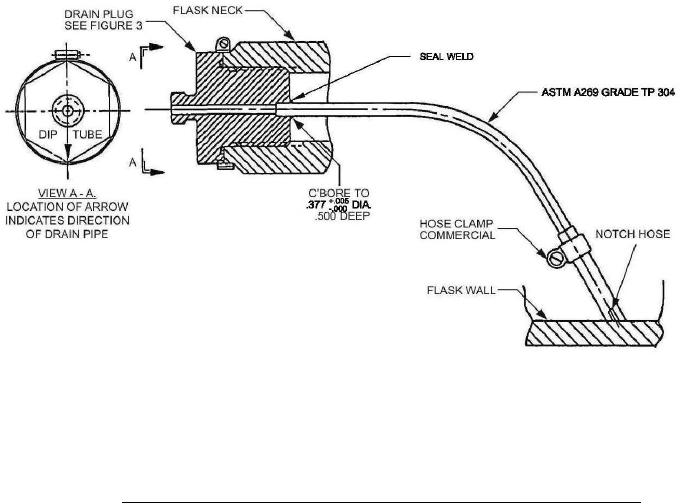

FIGURE 7. Type D drain plug with internal drain piping assembly for flasks installed horizontally.
24
